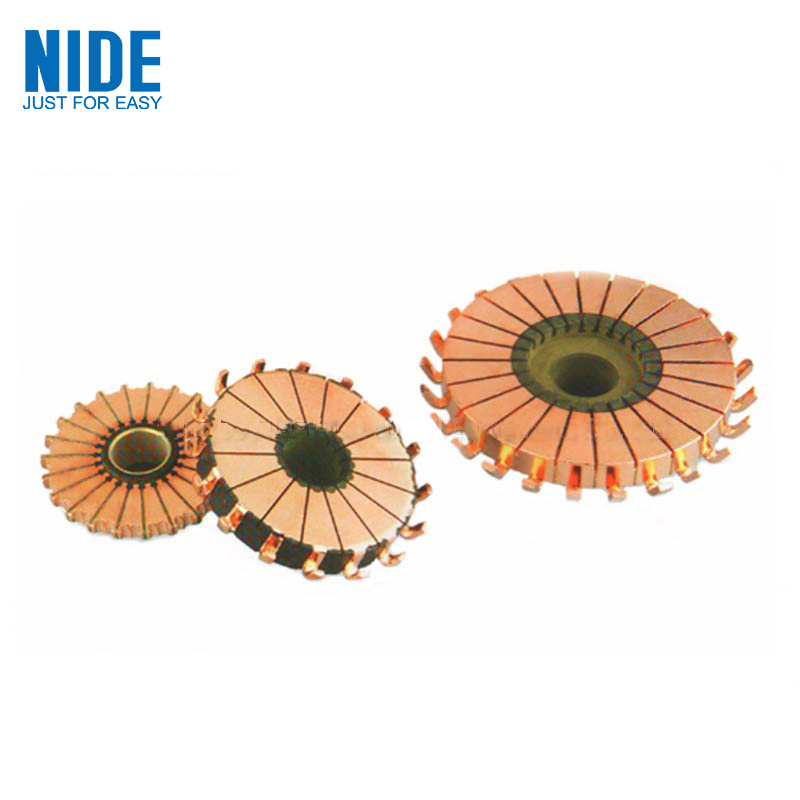

Hoʻohana nui ʻia ka Commutator no ka planer uila. Hana ʻia ia me nā mea maka i lawe ʻia mai a ua hōʻea kāna hana i ka pae kiʻekiʻe honua.
1. Sliver copper me ka ikaika kiʻekiʻe a me ke kūʻē ʻana
2. Ka manawa lōʻihi
3. Laulā o ka commutator
4. Hoʻohana ākea o ka commutator
5. maikaʻi maikaʻi
6. E hana i ka commutator e like me ke kaha ki'i a ka mea kū'ai.
Mahele No. |
O.D (D) |
I.D (d) |
Huina O D (D1) |
Bar No(N) |
Ka lōʻihi o ka pā (L1) |
Ka lōʻihi (L) |
JZQE-RS12-148 |
63 |
13.2 |
73 |
24 |
16 |
26.5 |
JZQE-RS12-148B |
63 |
20 |
73 |
24 |
16 |
26.5 |
JZQE-RS12-148C |
63 |
13.2 |
73 |
24 |
16 |
26.5 |
JZQE-RS12-149 |
40 |
15 |
43 |
43 |
10 |
18.2 |
JZQE-RS31-150 |
44 |
12.08 |
23 |
10 |
12.5 |
|
JZQE-RS31-150B |
44 |
12.35 |
23 |
10 |
12.5 |
|
JZQE-RS31-150C |
44 |
12.06 |
23 |
10 |
12.5 |
|
JZQE-RS31-150D |
44.2 |
12.08 |
23 |
10 |
12.5 |
|
JZQE-RS31-150E |
44 |
12 |
23 |
10 |
12.5 |
|
JZQE-RS12-151 |
47.6 |
13.2 |
57 |
16 |
14 |
24.5 |
JZQE-RS12-151B |
47.6 |
13.2 |
57 |
16 |
14 |
22 |
JZQE-RS12-151C |
47.6 |
13 |
57 |
16 |
14 |
24.5 |
JZQE-RS12-151D |
47.6 |
13 |
57 |
16 |
14 |
22 |
JZQE-RS12-151E |
47.6 |
13.4 |
57 |
16 |
14 |
24.5 |
JZQE-RS31-169 |
38 |
12.08 |
26 |
10 |
14.3 |
|
JZQE-RS12-193 |
74 |
33 |
85 |
81 |
12 |
12 |
JZQE-RS12-247 |
19.5 |
4 |
7 |
3 |
5.5 |
|
JZQE-RS12-326 |
49 |
13.2 |
16 |
14 |
15 |
|
JZQE-RS32-348 |
58 |
24.1 |
25 |
|||
JZQE-RS32-464 |
20.5 |
5 |
25 |
8 |
5.7 |
8.5 |
JZQE-RS32-464B |
20.5 |
5 |
24.7 |
8 |
5.7 |
8.5 |
JZQE-RS32-464C |
20.5 |
5 |
24.7 |
8 |
5.7 |
8.5 |
JZQE-RS32-464D |
20.5 |
5 |
25 |
8 |
5.7 |
8.5 |
JZQE-RS32-464E |
20.5 |
5 |
25 |
8 |
5.7 |
8.5 |
JZQE-RS12-480 |
78 |
23 |
25 |
13 |
23 |
|
JZQE-RS32-508 |
20.5 |
3.175 |
25 |
8 |
4.2 |
8.5 |
JZQE-RS31-525 |
44.2 |
12.08 |
23 |
10 |
13 |
|
JZQE-RS31-525B |
44.2 |
12.35 |
23 |
10 |
13 |
|
JZQE-RS31-525C |
44.2 |
12 |
23 |
10 |
13 |
|
JZQE-RS32-555 |
20.5 |
3 |
24.7 |
8 |
5.7 |
8.6 |
JZQE-RS12-593 |
71.5 |
13.2 |
64 |
24 |
28 |
32.5 |
JZQE-RS11-608 |
52.5 |
16 |
19 |
6.5 |
16 |
|
JZQE-RS11-608B |
52.5 |
16 |
19 |
6.5 |
16 |
|
JZQE-RS32-618 |
23 |
4 |
28.5 |
10 |
6.5 |
10 |
JZQE-RS32-618B |
22.5 |
4 |
28 |
10 |
6.5 |
10 |
JZQE-RS32-651 |
47.6 |
13 |
56.5 |
16 |
12.5 |
18.5 |
JZQE-RS32-664 |
48 |
13.4 |
57.5 |
16 |
12.5 |
24.5 |
JZQE-RS12-688 |
59 |
24.1 |
58 |
25 |
34.9 |
22 |
JZQE-RS12-689 |
59 |
24.1 |
58 |
25 |
34.9 |
19.5 |
JZQE-RS32-717 |
47.6 |
13.3 |
56.5 |
16 |
12 |
24.77 |
JZQE-RS32-739 |
44.2 |
13.8 |
23 |
10 |
13 |
|
JZQA-RS12-752 |
31 |
11.5 |
40 |
21 |
25.5 |
28 |
JZQB-RS31-792 |
61 |
13.5 |
29 |
9 |
16 |
|
JZQE-RS31-796 |
44.2 |
9 |
23 |
10 |
12.5 |
|
JZQE-RS12-846 |
48.5 |
10.2 |
48.5 |
25 |
6 |
11 |
JZQE-RS32-854 |
47.6 |
13.2 |
56.6 |
16 |
7 |
22 |
JZQE-RS12-907 |
48.5 |
10.2 |
48.5 |
25 |
6 |
10 |
JZQE-RS12-926 |
64 |
20 |
60 |
31 |
5 |
17 |
Hoʻohana nui ʻia ka Electric Planer Commutator i nā mea hana mana, nā mea pono hale, nā kaʻa, nā kaʻa kaʻa a me nā kula ʻē aʻe; ʻO nā apo ʻohi, nā mea paʻa kalapona, nā papa uwila he mau kikoʻī like ʻole a me nā hiʻohiʻona. Hoʻohana ʻia ia i nā mea hana kaʻa, nā mea hana ʻaila a me nā māla ʻē aʻe.
Commutator no ka Planer Uila
1. Voltage ho'āʻo: bar to bar ma 500V, 1s, bar to bore ma 1500V, 1 min, me ka haki ʻole a uila paha.
2. Ho'āʻo milo: hana i ka ho'āʻo milo no ka commutator ma lalo o 140 centigrade, 5000RPM, 3min. Ma hope o ka hoʻāʻo ʻana, ʻo 0.015 ka palena kiʻekiʻe o ke anawaena o waho, ʻo ka bar a me ka bar he 0.005.
3. Ke kū'ē kū'ē: 500V,ʻoi aku ma mua o 50MΩ
4. Kaʻawale mai ka ʻōhū, nā māwae, a i ʻole ka burr ma ka ʻili.
