ʻO Juicer Motor Commutator no nā lako hale

NIDE commutators loaʻa i ke ʻano makau, ke ʻano groove, ʻano pālahalaha a me nā kikoʻī ʻē aʻe. Hoʻomaʻemaʻeʻia mai nā mea waiwai kiʻekiʻe. Hoʻohana nui ʻia i nā mea hana mana, nā mea pono hale, nā kaʻa, nā kaʻa kaʻa a me nā kula ʻē aʻe; ʻO nā apo hōʻiliʻili, nā mea paʻi kalapona kalapona, nā papa wiring he mau kikoʻī like ʻole a me nā hiʻohiʻona. Hiki iā ʻoe ke hōʻoluʻolu e kūʻai i ka Juicer Motor Commutator For Home Appliances mai kā mākou hale hana a hāʻawi mākou iā ʻoe i ka lawelawe maikaʻi loa ma hope o ke kūʻai aku a me ka hāʻawi manawa.

E hoʻouna i ka nīnau

Hōʻike huahana

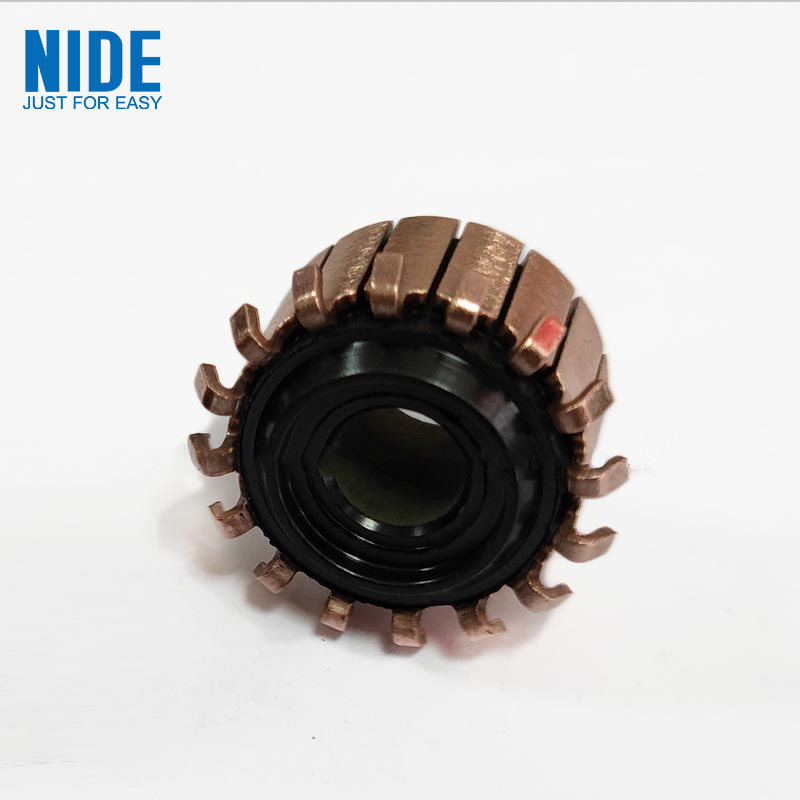

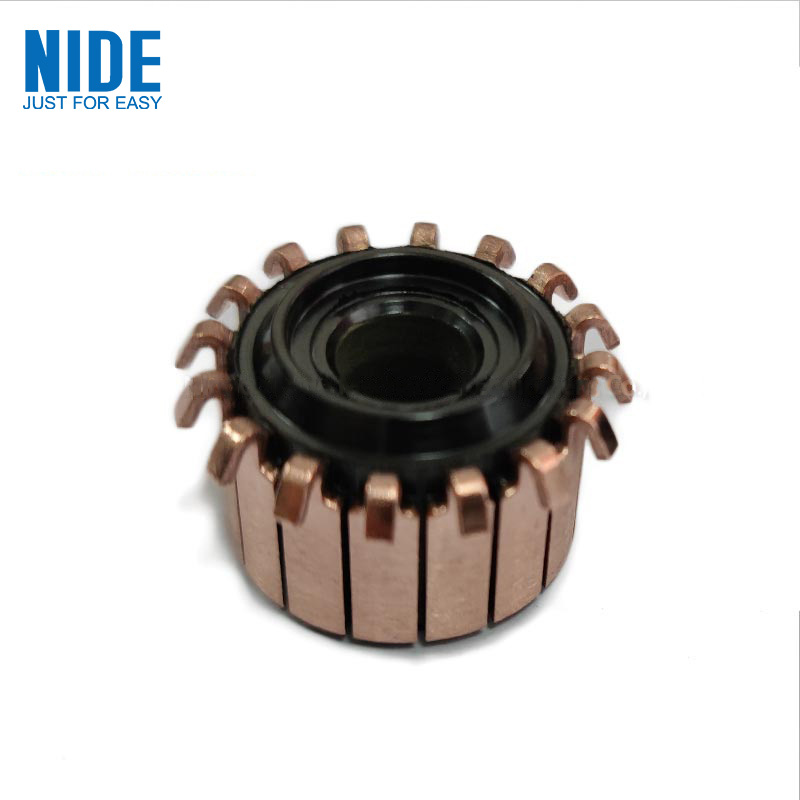

ʻO Juicer Motor commutator no nā lako hale

1. Hoʻolauna Huahana

E like me nā ʻano ʻano like ʻole o ka commutator a me nā ʻano hoʻolālā laka kūloko, ua māhele ʻia ʻo Juicer Motor commutator i kahi commutator integral a me kahi commutator flat. He cylindrical ka commutator hoʻohui a ua like ke kaula keleawe me ka lua. Hōʻike ʻia ia e ka hoʻolālā maʻalahi a me ka pono hana. kiʻekiʻe. ʻEkolu mau ʻano kumu o nā mea hoʻohui hoʻohui: keleawe a me ka mica, mica molded a molded shells. Ua like ke ano o ka planar commutator me ka pe'ahi, me na kaola keleawe me ka pauku kea pe'a e ku pono ana i ka lua.

2. Product Parameter (Specification)

Ke kumu hoʻohālike No.	OD (mm)	ID(mm)	huina kiekie (mm)	Māhele lōʻihi (mm)	Hook/Riser dia. (mm)	Bar No.
S-02001	37.5	Ï†13	24	20.5	38.5	32
S-03002	15.75	Ï†13	11.25	9.5	16	24
S-03003	24	Ï†9	17	14	25	24
S-03003B	24.5	Ï†10	17.5	14	25.5	24
S-03003C	24.5	Ï†10	17.5	14	25.5	24
S-02004	24	Ï†9	15	13	24.5	24
S-03004A	23.2	Ï†9	15	13	24	24
S-03005	24	Ï†9	17	14	25	24
S-03005A	24	Ï†9	17	14	25	24
S-03006	37.5	Ï†13	26	23	38.5	32
S-03007	25.5	Ï†10	17	14	26.5	24
S-03007B	25.5	Ï†10	17	14	26.5	24
S-03008	23.5	Ï†9	14	12	24	24
S-03009	24	Ï†9	16.6	14	29	24
DZQD-RZ32-010	28.5	Ï†12	17.5	16	34.3	24
S-03011	23.5	Ï†9	17.5	14	28	24
DZQD-RZ32-012	23.5	Ï†10	18	16.4	28.5	24
S-03013	23	Ï†8	16	14	23.5	24
S-03014	28.5	Ï†11	20	17	29.5	24
S-03015	22.5	Ï†9	17.5	17.2	30	10
S-03016	28	Ï†14	20	19.2	36.8	12
S-03016A	28	Ï†14.2	20	19.2	36.8	12
S-03017	28.5	Ï†9	17.5	15	29.5	24
S-03018	34.3	Ï†13	22	20.5	41.5	24
S-03019	24.5	Ï†10	17.5	14	25.5	24
S-03019A	24.5	Ï†10	17.5	14	25.5	24
S-03020	28.5	Ï†11	17	14	29.5	24
S-03021	20.5	Ï†10	18	13.5	30.5	12
QZQC-RZ12-022	20.5	Ï†10	17.8	13.5	26	12
S-03024	40.4	Ï†13	24	20	42	50
S-03025	23.2	Ï†8	17.5	17	30	12
QZQC-RZ32-026	20.2	Ï†8	14.6	14.1	25	16
QZQC-RZ32-026A	20.2	Ï†8	14.6	14.1	25.5	16
QZQC-RZ12-027	18.9	Ï†8	14.5	12.8	24	12
S-03028	15.5	Ï†7	11.4	11.7	20	9
S-03030	22.5	Ï†9.2	18	17.7	30.6	10
S-03031	22.5	Ï†12	21	20.5	30.5	10
S-03032	28.5	Ï†12	17.5	14.5	29.5	24
S-03033	30	Ï†10	20	17	35.5	24
S-03033A	30	Ï†11	21	18	36	24
S-03033B	30	Ï†11	21	18.5	36	24
S-03033C	30	Ï†11	21	18.5	36	24
JZQC-RZ32-037	22	Ï†8	16	14.2	27	16
S-03038	35.4	Ï†14	42.5	38	48	23
S-03038A	35.4	Ï†14	42.5	38	48	23
S-03044	22.5	Ï†10	17.5	17	28.5	10
S-03045	35.5	Ï†15.75	23.5	20	46	19
S-03046A	37.5	Ï†14	42	38	49.5	23
S-03046B	37.5	Ï†14	42	38	49.5	23
S-03047	45	Ï†15.5	50	44.4	62	21
S-03048	34	Ï†10.2	38.5	34.5	46.5	23
S-03050	15	Ï†5	16.5	15.5	20	12

3.Product Hiʻona a me ka noi

Hoʻohana nui ʻia ka Motor commutator i nā mea hana mana, nā mea pono hale, nā kaʻa, nā kaʻa kaʻa a me nā kula ʻē aʻe; ʻO nā apo ʻohi, nā mea paʻa kalapona, nā papa uwila he mau kikoʻī like ʻole a me nā hiʻohiʻona.

4. Product Details

ʻO Juicer Motor commutator no nā lako hale
