AC kaʻa commutator 24P armature commutator 30.31223.5mm

Hoʻopuka ʻo NIDE i nā ʻano like ʻole o ka commutator, me ke ʻano hook, type riser, shell type, planar type, mai OD 4mm a OD 150mm. Hoʻohana nui ʻia nā commutators i ka ʻoihana kaʻa, nā mea hana mana, nā mea pono hale, a me nā kaʻa ʻē aʻe.

Hoʻohālike:NDPJ-HXQ-549

E hoʻouna i ka nīnau

Hōʻike huahana

AC kaʻa commutator 24P armature commutator 30.3*12*23.5mm

1. AC Motor Commutator Hoʻolauna

1. Resin Surface ʻaʻohe ʻōhū, māwae, etc.

2.Dielectric ikaika: bar-bar 500V / AC, 1S, bar-shaft 3000VAC, 60S,ʻaʻohe māwae a flash

3.Insulation kū'ē: lumi wela, 500V / DC Mega mika, insulation kū'ē>

100MΩ

4.Unmarked tolerance accord me GB/T1804-m

5. Uila koho pu commutator kū'ē: 500V, oi aku mamua o 50MΩ

6. Ho'āʻo milo: hana i ka ho'āʻo milo no ka commutator ma lalo o 140 centigrade, ʻo 5000RPM ka wikiwiki, hoʻomau ka hoʻāʻo no 3min. Ma hope o ka hoʻāʻo ʻana, ʻoi aku ka liʻiliʻi o ke anawaena o waho ma mua o 0.015, ʻoi aku ka liʻiliʻi ma waena o ka pā a me ka pahu ma mua o 0.005.

7. Voltage ho'āʻo: bar to bar 500V, bar to bore 1500V, me ka haki ʻole a me ka uila.

2. AC Motor Commutator Nā ʻāpana (Hōʻike)

Inoa mea kūʻai:	ʻO ka pū kiʻi uila AC commutator
Mea Hana:	0.03% a i ʻole 0.08% sliver keleawe a i ʻole maʻamau
Ana:	30.31223.5mm a i ʻole i hana ʻia
ʻAno Commutator:	ʻAno Hook/Raiser type
Noi:	ʻO ka ʻoihana kaʻa, nā mea hana mana, nā mea pono hale, a me nā kaʻa ʻē aʻe
Pūʻolo:	He kūpono no ka halihali ʻāina a me ke kai
Hiki ke hana:	1000000pcs / mahina

3.AC Motor Commutator Hiʻona A me ka noi

He kūpono ka Hook Commutator no Universal Motor, Industrial Motor, Household Tools, Car, Power Tools, Electric Bikes & Motorcycles.

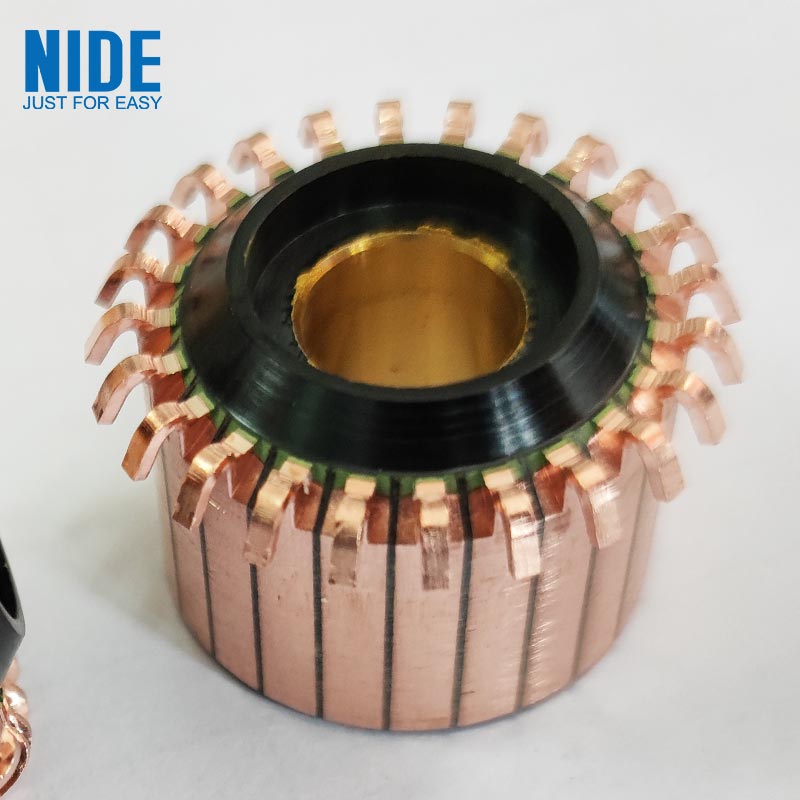

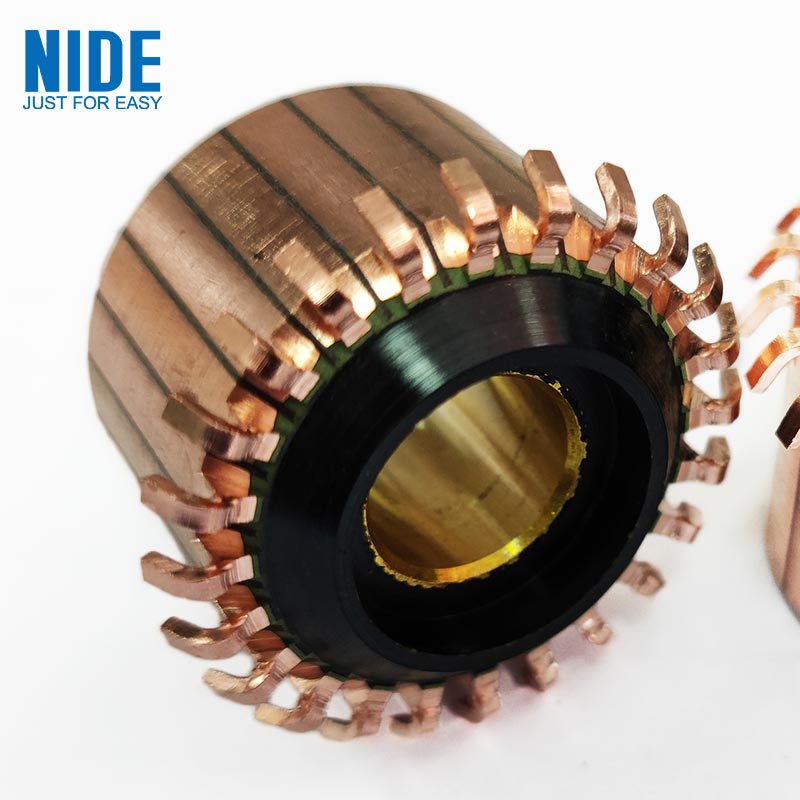

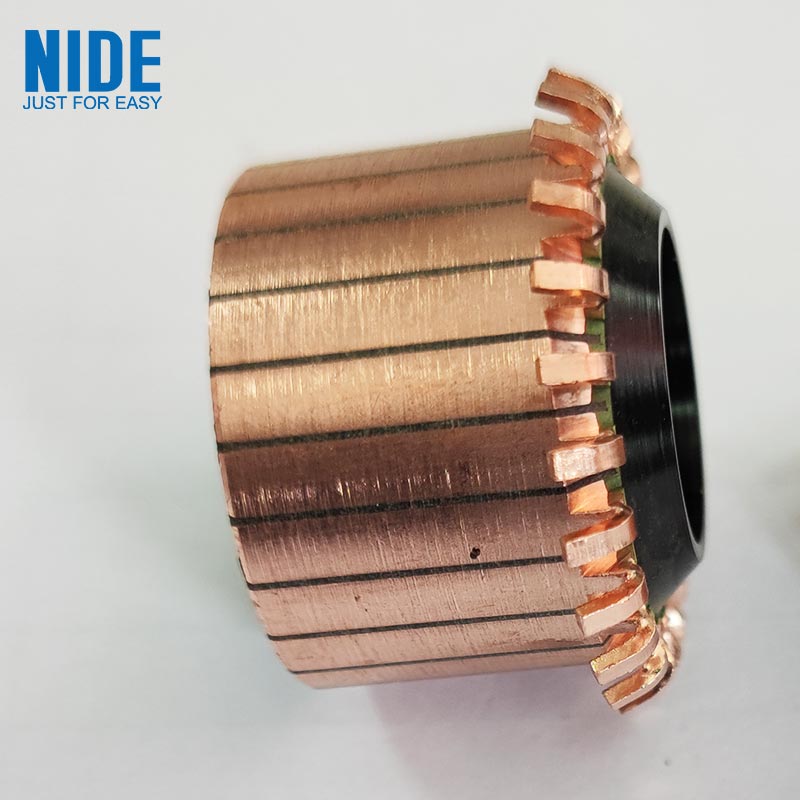

4.AC Motor Commutator Picture

Hōʻailona Wela: AC motor commutator 24P armature commutator 30.3 * 12 * 23.5mm, Hoʻopilikino ʻia, Kina, Nā mea hana, nā mea kūʻai aku, hale hana, hana ʻia ma Kina, Kumukūʻai, Kūʻai, CE
