Kūʻai Kūʻai Nui Commutator Armature

Kūʻai Kūʻai Nui Commutator Armature Hiki iā mākou ke hana i nā ʻano commutators e like me kāu kaha kiʻi a i ʻole nā laʻana. 1.Commutators no nā mīkini hale 2.Commutators no kaʻoihana kaʻa kaʻa 3.Commutators no nā mea hana mana 4.Commutators no nā ʻoihana ʻē aʻe

Hoʻohālike:NDPJ-HXQ-03008

E hoʻouna i ka nīnau

Hōʻike huahana

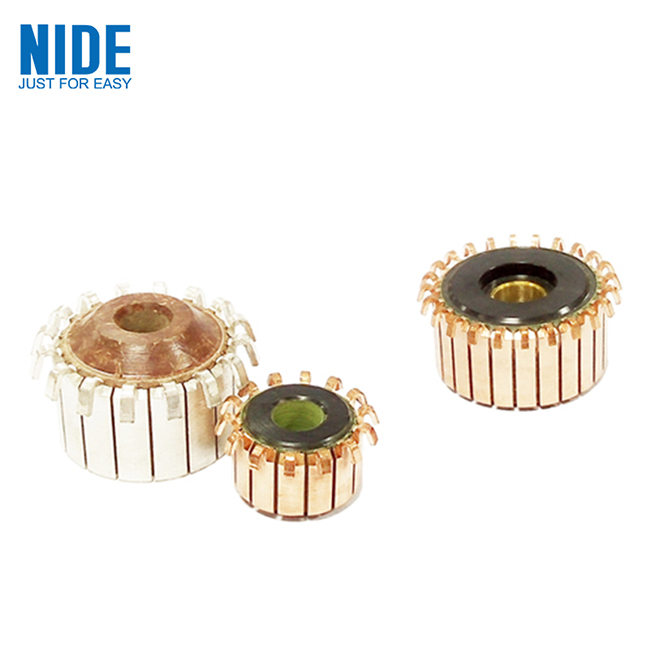

Kūʻai Kūʻai Nui Commutator Armature

1.Power Mea Hana CommutatorNā kikoʻī ʻenehana:

No ka hoʻokuʻu ʻole ʻia (bubble) ma mua o 1mm a me nā māwae ma ka ʻili resin i hoʻoheheʻe ʻia, akā pono e ʻae ʻia ka lua ea (hohonu: 1.4±0.1, laula: 0.5±0.05).
Ho'āʻo Voltage: Paʻa i ka pā ma 450V, 1s, a me ka pahu i ka lāʻau ma 1500V, 1min, ʻaʻohe haki a i ʻole ka ʻala.
Spin Test: Ma lalo o 180±2 ℃, 3000rpm, 3mins, ʻo ka hoʻololi kiʻekiʻe ma OD ʻo 0.01mm a ʻo ka hoʻokaʻawale kiʻekiʻe ma waena o ka pahu i ka pahu he 0.003max.
Palekana Insulation: ʻOi aku ka nui o ka pale insulation ma mua o 50MΩ ma lalo o 500V.
Ma waho aʻe o ke koʻikoʻi kiʻekiʻe a mākou e kau ai i ka maikaʻi i ka wā o ke kaʻina hana, hoʻokau nui mākou i ka ʻike. Hoʻāʻo mākou i nā commutators i kēlā me kēia ma hope o ka hana ʻana me nā lako ʻoihana e hōʻoia i ka hiki ʻole o kekahi pilikia maikaʻi.
Ke nānā nui nei mākou i ka pūʻolo. ʻO nā ukana a pau i hāʻawi ʻia mai kā mākou hale hana he paʻa ikaika e pale aku i nā ʻeha i ka wā o ka lawe ʻana i ka hale kūʻai a me ka wā o ka hoʻouna ʻana.
Manaʻo mākou ʻaʻole ʻo ka maikaʻi wale nō, akā ʻo ke kumukūʻai hoʻi e pono e hoʻokūkū. Ke ʻimi nei mākou a hoʻomohala i nā ala hou a me nā ʻenehana kiʻekiʻe i nā manawa a pau e hōʻoia i kā mākou huahana me nā kumukūʻai maikaʻi aʻe.

Hiki iā mākou ke hana i nā ʻano commutators e like me kāu kaha kiʻi a i ʻole nā laʻana.

- Ke keleawe kala me ka manaʻo kiʻekiʻe, hoʻohui ʻia i hoʻopili ʻia, i ka maikaʻi maikaʻi.
- Ka lawelawe maikaʻi no kēlā me kēia mea kūʻai.
- Mea ʻike pono kūpono a me ka mea hōʻike kūlana hana hilinaʻi
- Hāʻawi i nā lawelawe OEM kūpono.
- Ke kumu kūʻai hoʻokūkū a me ka hāʻawi koke ʻana.

Inoa mea kūʻai:	12v commutator
MAI	25.5
ID	f10
Kiekie Huina	17
Māhele lōʻihi	14
Hook/Riser dia.	26.5
bar no.	24

2. ʻĀpana huahana (Specification)

Mahele No.	O.D (D)	I.D (d)	Huina O D (D1)	Bar No(N)	Ka lōʻihi o ka pā (L1)	Ka lōʻihi (L)
JZQE-RS12-148	63	13.2	73	24	16	26.5
JZQE-RS12-148B	63	20	73	24	16	26.5
JZQE-RS12-148C	63	13.2	73	24	16	26.5
JZQE-RS12-149	40	15	43	43	10	18.2
JZQE-RS31-150	44	12.08		23	10	12.5
JZQE-RS31-150B	44	12.35		23	10	12.5
JZQE-RS31-150C	44	12.06		23	10	12.5
JZQE-RS31-150D	44.2	12.08		23	10	12.5
JZQE-RS31-150E	44	12		23	10	12.5
JZQE-RS12-151	47.6	13.2	57	16	14	24.5
JZQE-RS12-151B	47.6	13.2	57	16	14	22
JZQE-RS12-151C	47.6	13	57	16	14	24.5
JZQE-RS12-151D	47.6	13	57	16	14	22
JZQE-RS12-151E	47.6	13.4	57	16	14	24.5
JZQE-RS31-169	38	12.08		26	10	14.3
JZQE-RS12-193	74	33	85	81	12	12
JZQE-RS12-247	19.5	4		7	3	5.5
JZQE-RS12-326	49	13.2		16	14	15
JZQE-RS32-348	58	24.1		25
JZQE-RS32-464	20.5	5	25	8	5.7	8.5
JZQE-RS32-464B	20.5	5	24.7	8	5.7	8.5
JZQE-RS32-464C	20.5	5	24.7	8	5.7	8.5
JZQE-RS32-464D	20.5	5	25	8	5.7	8.5
JZQE-RS32-464E	20.5	5	25	8	5.7	8.5
JZQE-RS12-480	78	23		25	13	23
JZQE-RS32-508	20.5	3.175	25	8	4.2	8.5
JZQE-RS31-525	44.2	12.08		23	10	13
JZQE-RS31-525B	44.2	12.35		23	10	13
JZQE-RS31-525C	44.2	12		23	10	13
JZQE-RS32-555	20.5	3	24.7	8	5.7	8.6
JZQE-RS12-593	71.5	13.2	64	24	28	32.5
JZQE-RS11-608	52.5	16		19	6.5	16
JZQE-RS11-608B	52.5	16		19	6.5	16
JZQE-RS32-618	23	4	28.5	10	6.5	10
JZQE-RS32-618B	22.5	4	28	10	6.5	10
JZQE-RS32-651	47.6	13	56.5	16	12.5	18.5
JZQE-RS32-664	48	13.4	57.5	16	12.5	24.5
JZQE-RS12-688	59	24.1	58	25	34.9	22
JZQE-RS12-689	59	24.1	58	25	34.9	19.5
JZQE-RS32-717	47.6	13.3	56.5	16	12	24.77
JZQE-RS32-739	44.2	13.8		23	10	13
JZQA-RS12-752	31	11.5	40	21	25.5	28
JZQB-RS31-792	61	13.5		29	9	16
JZQE-RS31-796	44.2	9		23	10	12.5
JZQE-RS12-846	48.5	10.2	48.5	25	6	11
JZQE-RS32-854	47.6	13.2	56.6	16	7	22
JZQE-RS12-907	48.5	10.2	48.5	25	6	10
JZQE-RS12-926	64	20	60	31	5	17

3.Product Hiʻona a me ka noi

Hoʻohana ʻia kēia commutator i ka kaʻa AC, kaʻa kaʻa hoʻokahi, nā kaʻa kaʻa, nā kaʻa hoʻomaka kaʻa kaʻa, nā mīkini hana mana a me nā kaʻa kūikawā micro.

1.Commutators no nā mīkini hale: ka lauoho maloʻo, ka mea hui, ka mea hoʻomaʻemaʻe, ka mīkini holoi, ka mīkini wai puna, whisk, juicer, soymilk, a no nā mea hana hale ʻē aʻe.
2.Commutators for automotive motor industry: Starting , generator , Wiper , Air conditioner , uila puka makani hoʻokele , Seat adjustment , Mirror motor , Electronic brake , Radiator fan , uila hoʻokele, headlight steering , Blower fan, heat fan , Cooling water tank radiator , a no nā mīkini eletronic ʻē aʻe.
3. Nā mea hoʻohana no nā mea hana mana : Mīkini weeding, drill uwila, wili wili, ʻili uila, hāmare, mīkini ʻoki, ʻili uila, planer a me no nā mea uila ʻē aʻe.
4 Ka mea hoʻohana no nā ʻoihana ʻē aʻe : ʻO ka Pum, nā ʻakika kaʻa, ka motopaika, nā pahū moku moku, nā mea pāʻani, ka puka uila, nā mea hoʻoikaika kino, nā kiʻi lewa a pēlā aku.
