24P Niho Copper Shell Electric DC Motor Commutator

24P Niho Copper Shell Electric Motor Commutator 10x28.2x20mm


Hoʻohana Commutator

E like me ka hana ʻoihana, makemake mākou e hāʻawi iā ʻoe i ke kiʻekiʻe 24P Tooth Copper Shell Electric DC Motor Commutator. A e hāʻawi mākou iā ʻoe i ka lawelawe ma hope o ke kūʻai aku a me ka hāʻawi manawa. Hoʻohana ʻia ka commutator i ka kaʻa alternator, ʻoihana kaʻa, nā mea hana mana, nā mea pono hale, a me nā kaʻa ʻē aʻe.


Pono ʻenehana o ka commutator:

1. Voltage ho'āʻo: bar to bar 500V, bar to bore 1500V, me ka haki ʻole a me ka uila.

2. Ho'āʻo milo: hana i ka ho'āʻo milo no ka commutator ma lalo o 140 centigrade, ʻo 5000RPM ka wikiwiki, hoʻomau ka hoʻāʻo no 3min. Ma hope o ka hoʻāʻo ʻana, ʻoi aku ka liʻiliʻi o ke anawaena o waho ma mua o 0.015, ʻoi aku ka liʻiliʻi ma waena o ka pā a me ka pahu ma mua o 0.005.

3. Ke kū'ē kū'ē: 500V,ʻoi aku ma mua o 50MΩ


ʻIkepili ʻenehana o ka commutator:

Inoa mea kūʻai: Copper Shell Electric Motor Commutator
Mea Hana: 0.03% a i ʻole  0.08% sliver keleawe a i ʻole i hana ʻia
Nā ʻāpana: 24P
Anana: 10x28.2x20mm a i ʻole i hana ʻia
ʻAno Commutator: ʻAno Hook
Hiki ke hana: 1000000pcs / mahina

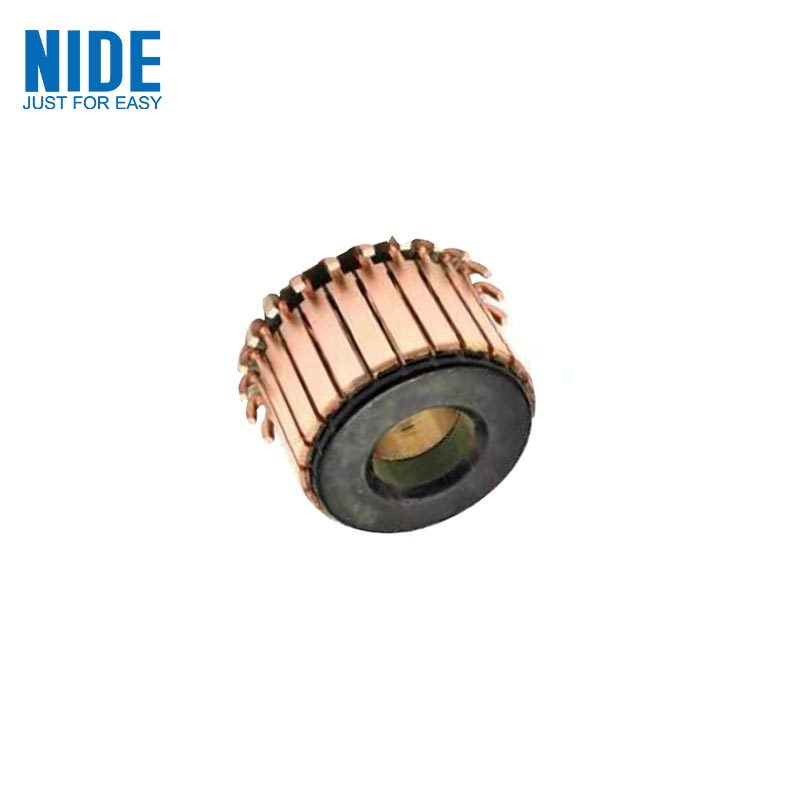

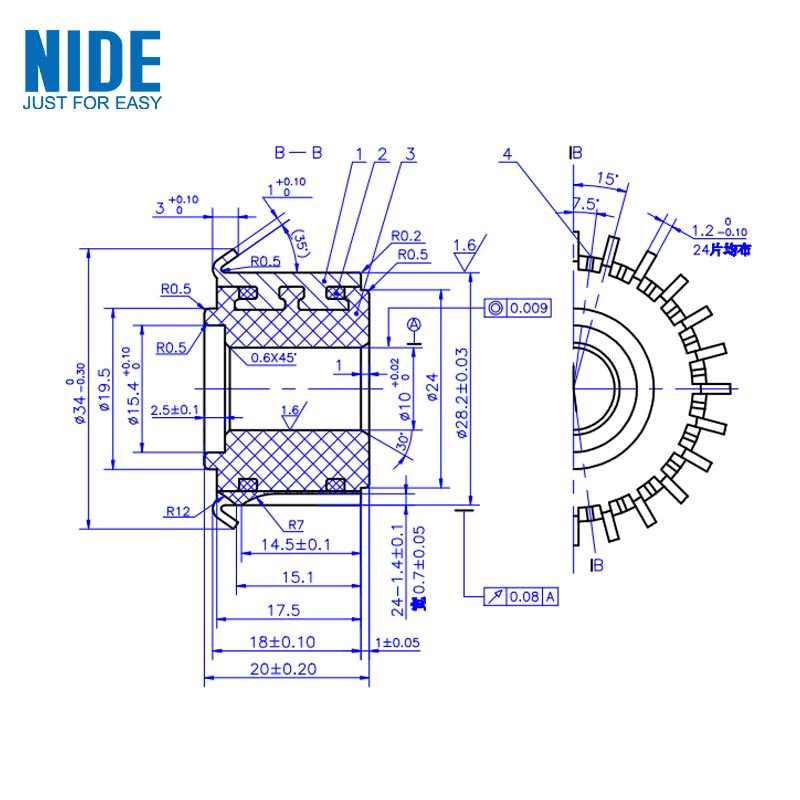

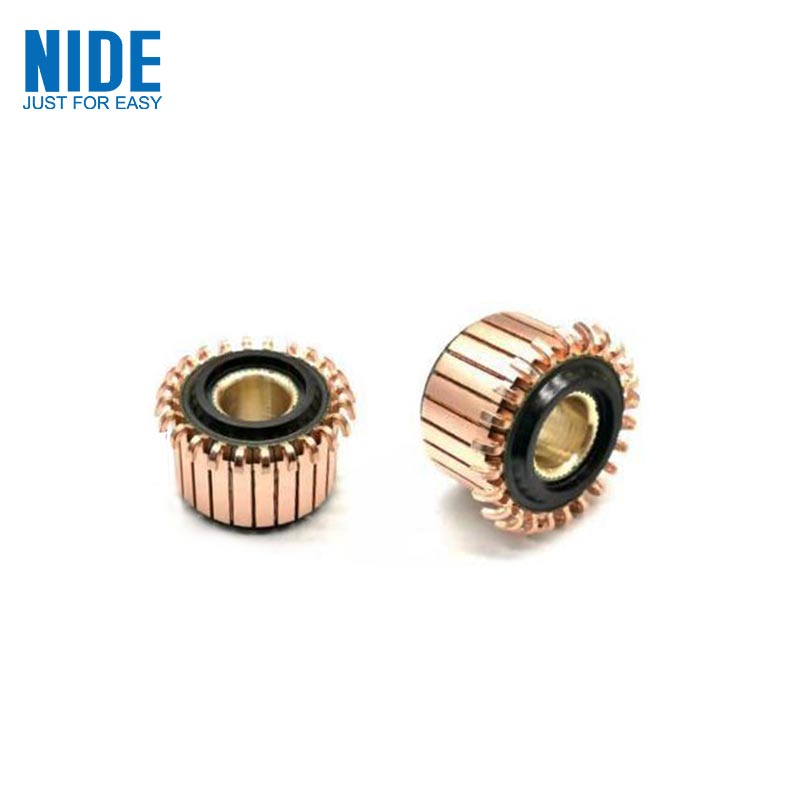

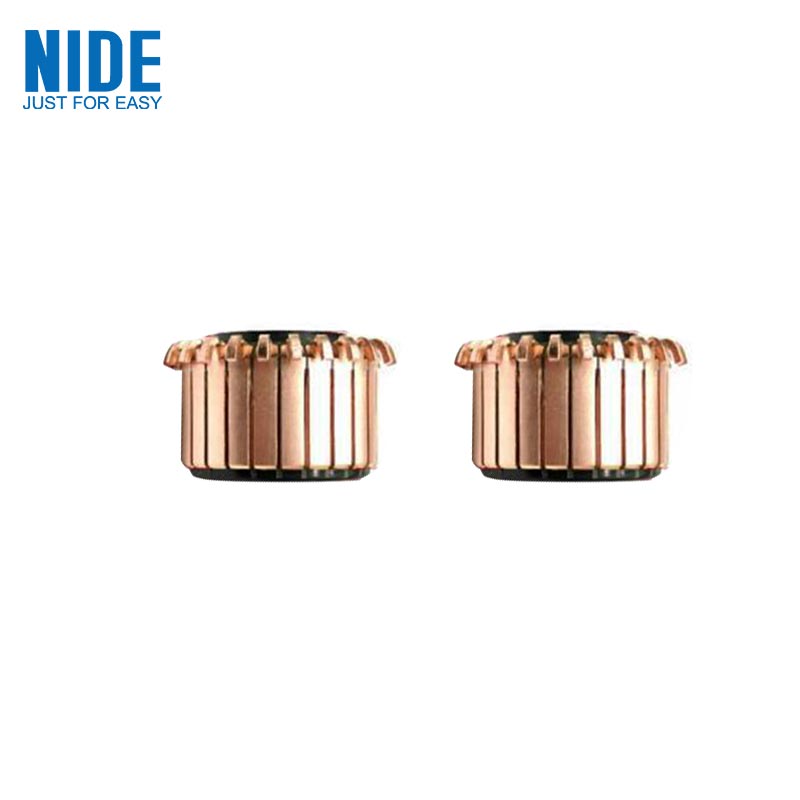

Hōʻike Kiʻi Commutator
